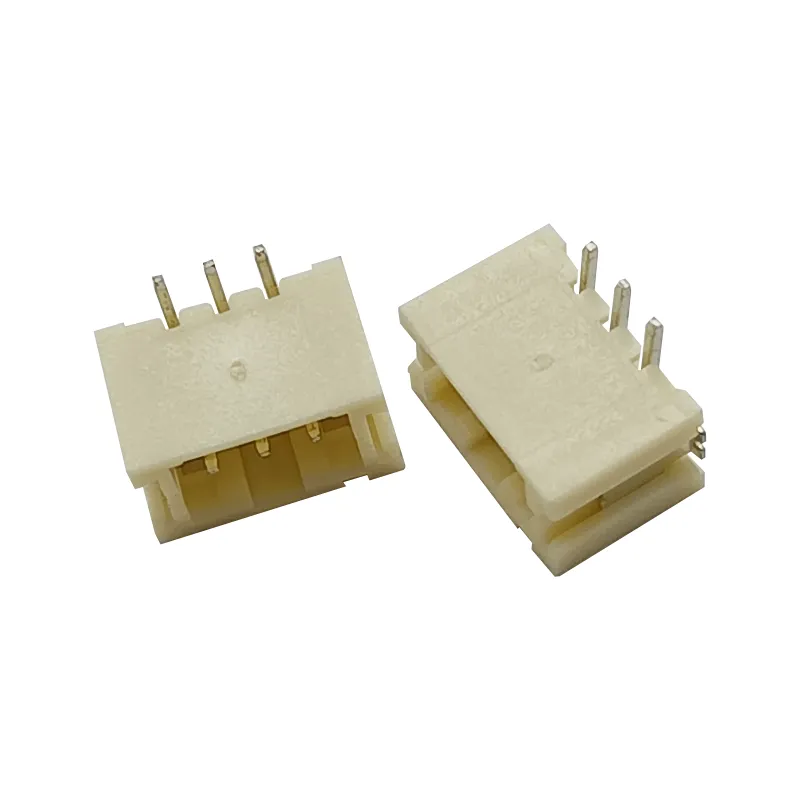

PH S3B-PH-SM4-TB 2.0mm SMT side entry conn header Right Angle 3 position 0.079″
PH S3B-PH-SM4-TB 2.0mm SMT side entry conn header Right Angle 3 position 0.079″ PH S3B-PH-SM4-TB 2.0mm SMT side entry conn header Right Angle 3 position 0.079″
  • PH S3B-PH-SM4-TB 2.0mm SMT side entry conn header Right Angle 3 position 0.079″

  • Part No : WFRSM20-03
  • Current Rating:2.0A AC DC

    Voltage Rating:125V AC.DC

    Contact resistance:20m ohm. Max

    INSULATION RESISTANCE:1000m ohm Min

    Withstanding Volatge:500V AC for one minute

    Operating Temperature:-40°C-85°C

    Insulator:Nylon 6T(UL94V-0)

    Insulator color:Beige


  • Inquiry now
  • Products Drawing

Detailed description


Melissa Lee

Email:sales05@dghoyato.com
Skype:limiao425
Wechat/Phone/Whatsapp:86-13337908889

PH S3B-PH-SM4-TB 2.0mm SMT side entry conn header Right Angle 3 position 0.079″

Connector Type
Headers, Male Pins
Orginal P/N
JST PH,JST S3B-PH-SM4-TB, S3B-PH-SM4-TB,Equivalent to JST connectors




Pitch – Mating
2.0mm
Number of Positions
2-10
Package
1000pcs/Reel
Mounting Type
Surface Mount, Right Angle
Contact Material
Brass
Plasting
Tin Plated
