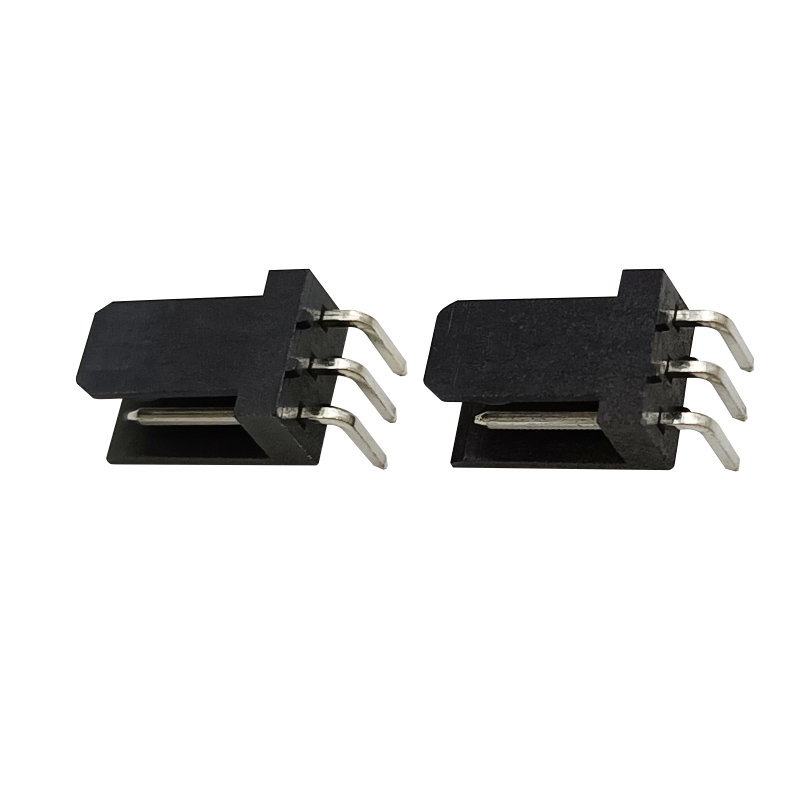

Connector Header Through Hole 3 position 0.100″ (2.54mm) for TE Connectivity AMP Connectors AMPMODU Mod II 826468-3
- Part No : WF1R254-03T
-
Specifications
Current Rating: 3.0A AC/DC
Voltage Rating: 250V AC/DC
Contact Resistance: 20m ohm. Max
Insulation Resistance: 1000Mohm min
Withstanding Voltage: 500V(r.m.s) For one Minute
Operating Temperature Range: -40°C ~ +105°C
Materials:
Insulator: High Temp. Plastic(Nylon 66 UL94V-0)
Color: Black
Contact: Copper Alloy
Plated: Tin Plated
- Inquiry now
- Products Drawing
Detailed description
Melissa Lee
Email:sales05@dghoyato.com
Skype:limiao425
Phone/Whatsapp:86-13337908889
Connector Header Through Hole 3 position 0.100″ (2.54mm) for TE Connectivity AMP Connectors AMPMODU Mod II 826468-3
|
Connector Type
|
Connector Header Through Hole 3 position 0.100″ (2.54mm) for TE Connectivity AMP Connectors AMPMODU Mod II 826468-3 | |||
|
Orginal P/N
|
TE Connectivity AMP Connectors AMPMODU Mod II 826468-3
|
|||
|
Pitch – Mating
|
2.54mm
|
|||
|
Number of Positions
|
2-20
|
|||
|
Number of rows
|
1
|
|||
|
Mounting Type
|
Right Angle
|
|||
|
Contact Material
|
Brass
|
|||
|
Plasting
|
Tin Plated
|
|||
The right-angle wire-to-board connector is a space-efficient solution for optimal PCB connectivity. Its design ensures a secure and efficient connection, making it ideal for applications where space is a critical factor.
Wire to board realizes the space conversion and signal extension between PCB board and board by the extension of line to line. It is used in many fields such as automobile, communication, consumer electronics, data processing, industrial machinery and so on. Application in PCB connection and extension of Auxiliary Circ.
