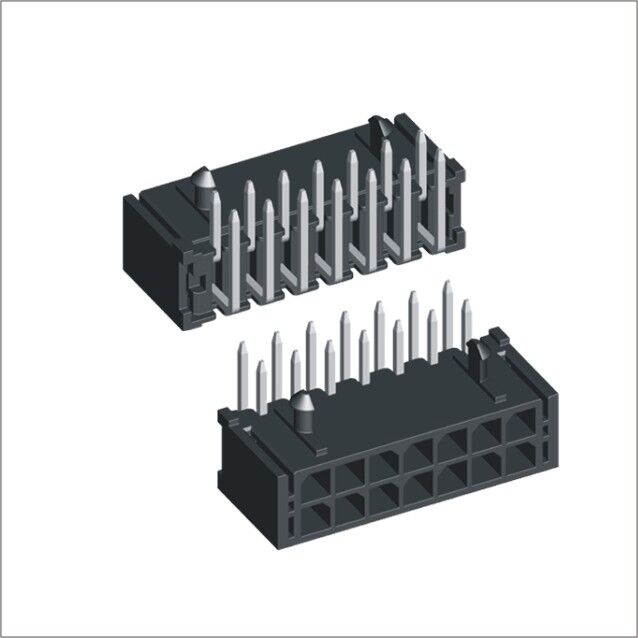

Micro Fit Jr 430451400 Header connector 43045 Wafer
- Part No : WFDR30-14T
-
Specifications
Current Rating: 5.0A AC/DC
Voltage Rating: 250V AC/DC
Contact Resistance: 10m ohm. Max
Insulation Resistance: 1000Mohm min
Withstanding Voltage: 1500V(r.m.s) For one Minute
Operating Temperature Range: -40°C ~ +85°C
Materials:
Insulator: High Temp. Plastic(Nylon 66 UL94V-0)
Color: Black
Contact: Copper Alloy
Plated: Tin Plated - Inquiry now
- Products Drawing
Detailed description
Micro Fit Jr 430451400 Header connector 43045 Wafer offer compact and reliable electrical connections. Ideal for various applications, ensuring secure and efficient power distribution in confined spaces.
What are the different series of Micro Fit Jr 430451400 Header connector 43045 Wafer? What are the compatible Micro Fit Jr 430451400 Header connector 43045 Wafer？
Hoyato can provide a perfect compaibility solution and compare it with Micro Fit Jr 430451400 Header connector 43045 Wafer Pin to Pin part numbers in the table
Hoyato and Molex part number comparison
| Product Description | molex part.no | Hoyato part No. |
Micro Fit Jr 430451400 Header connector 43045 Wafer Double row Right-Angle 2P PCB Header |
43045-0200/43045-0201/43045-0202 | WFDR30-02T/WFDR30-02SG15/WFDR30-02SG30 |
Micro Fit Jr 430451400 Header connector 43045 Wafer Double row Right-Angle 4P PCB Header |
43045-0400/43045-0401/43045-0402 | WFDR30-04T/WFDR30-04SG15/WFDR30-04SG30 |
Micro Fit Jr 430451400 Header connector 43045 Wafer Double row Right-Angle 6P PCB Header |
43045-0600/43045-0601/43045-0602 | WFDR30-06T/WFDR30-06SG15/WFDR30-06SG30 |
Micro Fit Jr 430451400 Header connector 43045 Wafer Double row Right-Angle 8P PCB Header |
43045-0800/43045-0801/43045-0802 | WFDR30-08T/WFDR30-08SG15/WFDR30-08SG30 |
Micro Fit Jr 430451400 Header connector 43045 Wafer Double row Right-Angle 10P PCB Header |
43045-1000/43045-1001/43045-1002 | WFDR30-10T/WFDR30-10SG15/WFDR30-10SG30 |
Micro Fit Jr 430451400 Header connector 43045 Wafer Double row Right-Angle 12P PCB Header |
43045-1200/43045-1201/43045-1202 | WFDR30-12T/WFDR30-12SG15/WFDR30-12SG30 |
Micro Fit Jr 430451400 Header connector 43045 Wafer Double row Right-Angle 14P PCB Header |
43045-1400/43045-1401/43045-1402 | WFDR30-14T/WFDR30-14SG15/WFDR30-14SG30 |
Micro Fit Jr 430451400 Header connector 43045 Wafer Double row Right-Angle 16P PCB Header |
43045-1600/43045-1601/43045-1602 | WFDR30-16T/WFDR30-16SG15/WFDR30-16SG30 |
Micro Fit Jr 430451400 Header connector 43045 Wafer Double row Right-Angle 18P PCB Header |
43045-1800/43045-1801/43045-1802 | WFDR30-18T/WFDR30-18SG15/WFDR30-18SG30 |
Micro Fit Jr 430451400 Header connector 43045 Wafer Double row Right-Angle 20P PCB Header |
43045-2000/43045-2001/43045-2002 | WFDR30-20T/WFDR30-20SG15/WFDR30-20SG30 |
Micro Fit Jr 430451400 Header connector 43045 Wafer Double row Right-Angle 22P PCB Header |
43045-2200/43045-2201/43045-2202 | WFDR30-22T/WFDR30-22SG15/WFDR30-22SG30 |
Micro Fit Jr 430451400 Header connector 43045 Wafer Double row Right-Angle 24P PCB Header |
43045-2400/43045-2401/43045-2402 | WFDR30-24T/WFDR30-24SG15/WFDR30-24SG30 |
With Mates with Part(s)
| Product Description | molex part.no | Hoyato part No. |
Micro Fit Jr Header connector 3.0mm 14P 43025 Receptacle Housing Double row |
43025-1400/43020-1408 |
HSD30-14 |
Micro Fit Jr Header connector 3.0mm 14P Crimp Terminal, Female |
430300002/430300003/430300004/430300005/430300006/430300007/430300008/43030009/430300010 |
HST30SG15-2420/HST30SG30-2420/HST30T-3026/HST30SG30-3026/ HST30T-2420/HST30SG15-2420/HST30SG30-2420/HST30T3026-BAG |
Micro Fit Jr 430451400 Header connector 43045 Wafer is a high-quality connector that is widely used in various industries for its reliability and durability. With its 14-pin design, this connector is perfect for connecting different components on a PCB board.
Applications by Industry Home Appliances:
Micro Fit Jr 430451400 Header connector 43045 Wafer is commonly used in home appliances such as freezers, printers, scanners, security systems, and washing machines. Its secure connection ensures that these appliances function smoothly and efficiently.
Automotive:
In the automotive industry,
Micro Fit Jr 430451400 Header connector 43045 Wafer is used by harness manufacturers, inside devices, and non-sealed applications. Its compact size and robust design make it ideal for use in challenging environments.
MedTech:
In the medical technology sector,
Micro Fit Jr 430451400 Header connector 43045 Wafer is used in diagnostic equipment and patient monitors. Its high-speed data transfer capability and secure connection make it a reliable choice for critical medical devices.
Telecommunications:
In the telecommunications industry,
Wire to board realizes the space conversion and signal extension between PCB board and board by the extension of line to line. It is used in many fields such as automobile, communication, consumer electronics, data processing, industrial machinery and so on. Application in PCB connection and extension of Auxiliary Circ.
