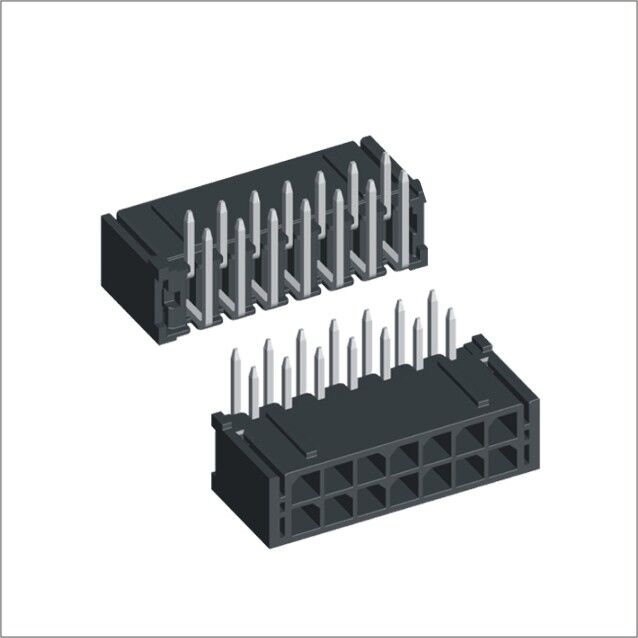

MicroFit 3.0 connector 43045 1400 molex 43045 PCB Header 14P
- Part No : WFDR30-14T-01
-
Specifications
Current Rating: 5.0A AC/DC
Voltage Rating: 250V AC/DC
Contact Resistance: 10m ohm. Max
Insulation Resistance: 1000Mohm min
Withstanding Voltage: 1500V(r.m.s) For one Minute
Operating Temperature Range: -40°C ~ +85°C
Materials:
Insulator: High Temp. Plastic(Nylon66 UL94V-0)
Color: Black
Contact: Copper Alloy
Plated: Tin Plated - Inquiry now
- Products Drawing
Detailed description
MicroFit 3.0 connector 43045 1400 molex 43045 PCB Header provide reliable and compact electrical connections. Ideal for various applications, ensuring secure and efficient power distribution in tight spaces.
Wire to board realizes the space conversion and signal extension between PCB board and board by the extension of line to line. It is used in many fields such as automobile, communication, consumer electronics, data processing, industrial machinery and so on. Application in PCB connection and extension of Auxiliary Circ.
MicroFit 3.0 connector 43045 1400 molex 43045 PCB Header family can withstand operating temperatures up to 125°C, is available in multiple circuit sizes and cable lengths for power applications and board-to-board, wire-to-board and wire-to-wire configurations.
What are the different series of MicroFit 3.0 connector 43045 1400 molex 43045 PCB Headerr? What are the compatible MicroFit 3.0 connector 43045 1400 molex 43045 PCB Header？
Hoyato can provide a perfect compaibility solution and compare it with MicroFit 3.0 connector 43045 1400 molex 43045 PCB Header Pin to Pin part numbers in the table
| Product Description | molex part.no | Hoyato part No. |
MicroFit 3.0 connector 43045 1400 molex 43045 PCB Header 2P Double row Right-Angle Header |
43045-0200/43045-0201/43045-0202/43045-0210 | WFDR30-02T-01/WFDR30-02SG15-01/WFDR30-02SG30-01/WFDR30-02MT-01 |
MicroFit 3.0 connector 43045 1400 molex 43045 PCB Header 4P Double row Right-Angle Header |
43045-0400/43045-0401/43045-0402/43045-0410 | WFDR30-04T-01/WFDR30-04SG15-01/WFDR30-04SG30-01/WFDR30-04MT-01 |
MicroFit 3.0 connector 43045 1400 molex 43045 PCB Header 6P Double row Right-Angle Header |
43045-0600/43045-0601/43045-0602/43045-0610 | WFDR30-06T-01/WFDR30-06SG15-01/WFDR30-06SG30-01/WFDR30-06MT-01 |
MicroFit 3.0 connector 43045 1400 molex 43045 PCB Header 8P Double row Right-Angle Header |
43045-0800/43045-0801/43045-0802/43045-0810 | WFDR30-08T-01/WFDR30-08SG15-01/WFDR30-08SG30-01/WFDR30-08MT-01 |
MicroFit 3.0 connector 43045 1400 molex 43045 PCB Header 10P Double row Right-Angle Header |
43045-1000/43045-1001/43045-1002/43045-1010 | WFDR30-10T-01/WFDR30-10SG15-01/WFDR30-10SG30-01/WFDR30-10MT-01 |
MicroFit 3.0 connector 43045 1400 molex 43045 PCB Header 12P Double row Right-Angle Header |
43045-1200/43045-1201/43045-1202/43045-1210 | WFDR30-12T-01/WFDR30-12SG15-01/WFDR30-12SG30-01/WFDR30-12MT-01 |
MicroFit 3.0 connector 43045 1400 molex 43045 PCB Header 14P Double row Right-Angle Header |
43045-1400/43045-1401/43045-1402/43045-1410 | WFDR30-14T-01/WFDR30-14SG15-01/WFDR30-14SG30-01/WFDR30-14MT-01 |
MicroFit 3.0 connector 43045 1400 molex 43045 PCB Header 16P Double row Right-Angle Header |
43045-1600/43045-1601/43045-1602/43045-1610 | WFDR30-16T-01/WFDR30-16SG15-01/WFDR30-16SG30-01/WFDR30-16MT-01 |
MicroFit 3.0 connector 43045 1400 molex 43045 PCB Header 18P Double row Right-Angle Header |
43045-1800/43045-1801/43045-1802/43045-1810 | WFDR30-18T-01/WFDR30-18SG15-01/WFDR30-18SG30-01/WFDR30-18MT-01 |
MicroFit 3.0 connector 43045 1400 molex 43045 PCB Header 20P Double row Right-Angle Header |
43045-2000/43045-2001/43045-2002/43045-2010 | WFDR30-20T-01/WFDR30-20SG15-01/WFDR30-20SG30-01/WFDR30-20MT-01 |
MicroFit 3.0 connector 43045 1400 molex 43045 PCB Header 22P Double row Right-Angle Header |
43045-2200/43045-2201/43045-2202/43045-2210 | WFDR30-22T-01/WFDR30-22SG15-01/WFDR30-22SG30-01/WFDR30-22MT-01 |
MicroFit 3.0 connector 43045 1400 molex 43045 PCB Header 24P Double row Right-Angle Header |
43045-2400/43045-2401/43045-2402/43045-2410 | WFDR30-24T-01/WFDR30-24SG15-01/WFDR30-24SG30-01/WFDR30-24MT-01 |
With Mates with Part(s)
| Product Description | molex part.no | Hoyato part No. |
MicroFit 3.0 connector 43045 1400 molex 43045 PCB Header 14P 43025 Receptacle Housing Double row |
43025-1400/43020-1408 |
HSD30-14 |
MicroFit 3.0 connector 43045 1400 molex 43045 PCB Header14PCrimp Terminal, Female |
430300002/430300003/430300004/430300005/430300006/430300007/430300008/43030009/430300010 |
HST30SG15-2420/HST30SG30-2420/HST30T-3026/HST30SG30-3026/ HST30T-2420/HST30SG15-2420/HST30SG30-2420/HST30T3026-BAG |
MicroFit 3.0 connector 43045 1400 molex 43045 PCB Header is a high-quality connector that is widely used in various industries for its reliability and durability. With its 14pin design, this connector is perfect for connecting different components on a PCB board.
Applications by Industry Home Appliances:
MicroFit 3.0 connector 43045 1400 molex 43045 PCB Header is commonly used in home appliances such as freezers, printers, scanners, security systems, and washing machines. Its secure connection ensures that these appliances function smoothly and efficiently.
Automotive:
In the automotive industry,
MicroFit 3.0 connector 43045 1400 molex 43045 PCB Header is used by harness manufacturers, inside devices, and non-sealed applications. Its compact size and robust design make it ideal for use in challenging environments.
MedTech:
In the medical technology sector,
MicroFit 3.0 connector 43045 1400 molex 43045 PCB Header is used in diagnostic equipment and patient monitors. Its high-speed data transfer capability and secure connection make it a reliable choice for critical medical devices.
Telecommunications:
In the telecommunications industry,
MicroFit 3.0 connector 43045 1400 molex 43045 PCB Headeris commonly used in routers and switches, servers, and storage devices. Its compatibility with different devices makes it a versatile option for telecommunications applications.
Hoyato MicroFit 3.0 connector 43045 1400 molex 43045 PCB Header known for its superior compatibility and performance. It is designed to meet the demands of various industries and applications, making it a popular choice among engineers and manufacturers. With its durable construction and reliable connection, MicroFit 3.0 connector 43045 1400 molex 43045 PCB Header
is sure to meet the needs of any project.
Products Description
MicroFit 3.0 connector 43045 1400 molex 43045 PCB Header
