MicroFit3 430451427 PCB Header connector 43045 Wafer
MicroFit3 430451427 PCB Header connector 43045 Wafer

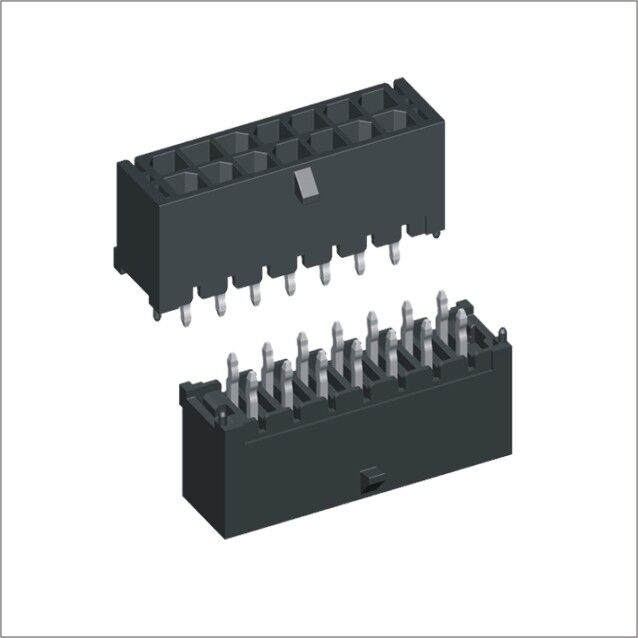

  • MicroFit3 430451427 PCB Header connector 43045 Wafer Dip type

  • Part No : WFDV30-XX
  • Specifications
    Current Rating: 5.0A AC/DC
    Voltage Rating: 250V AC/DC
    Contact Resistance: 10m ohm. Max
    Insulation Resistance: 1000Mohm min
    Withstanding Voltage: 1500V(r.m.s) For one Minute
    Operating Temperature Range: -40°C ~ +85°C
    Materials:
    Insulator: High Temp. Plastic(Nylon 66 UL94V-0)
    Color: Black
    Contact: Copper Alloy
    Plated: Tin Plated


  • Inquiry now
  • Products Drawing

Detailed description


Micro Fit3.0 PCB Header 430451424 connector 43045 Wafer provide reliable and compact electrical connections. Ideal for diverse applications, ensuring secure and efficient power distribution in constrained spaces.

  Wire to board realizes the space conversion and signal extension between PCB board and board by the extension of line to line. It is used in many fields such as automobile, communication, consumer electronics, data processing, industrial machinery and so on. Application in PCB connection and extension of Auxiliary Circ.

 Micro Fit3.0 PCB Header 430451424 connector 43045 Wafer family can withstand operating temperatures up to 125°C, is available in multiple circuit sizes and cable lengths for power applications and board-to-board, wire-to-board and wire-to-wire configurations.


What are the different series of Micro Fit3.0 PCB Header 430451424 connector 43045 Wafer ? What are the compatible Micro Fit3.0 PCB Header 430451424 connector 43045 Wafer r?

Hoyato can provide a perfect compaibility solution and compare it with Micro Fit3.0 PCB Header 430451424 connector 43045 Wafer Pin to Pin part numbers in the table

   Product Description molex part.no Hoyato part No.

MicroFit3 430451427 PCB Header connector 43045 Wafer 2p Double row straight dip type

43045-0227/43045-0228/43045-0229/43025-0298 WFDV30-02T/WFDV30-02SG15/WFDV30-02SG30/WFDV30-02MT

MicroFit3 430451427 PCB Header connector 43045 Wafer 4p Double row straight dip type

43045-0427/43045-0428/43045-0429/43025-0498 WFDV30-04T/WFDV30-04SG15/WFDV30-04SG30/WFDV30-04MT

MicroFit3 430451427 PCB Header connector 43045 Wafer 6p Double row straight dip type

43045-0627/43045-0628/43045-0629/43025-0698 WFDV30-06T/WFDV30-06SG15/WFDV30-06SG30/WFDV30-06MT

MicroFit3 430451427 PCB Header connector 43045 Wafer 8p Double row straight dip type

43045-0827/43045-0828/43045-0829/43025-0898 WFDV30-08T/WFDV30-08SG15/WFDV30-08SG30/WFDV30-08MT

MicroFit3 430451427 PCB Header connector 43045 Wafer 10p Double row straight dip type

43045-1027/43045-1028/43045-1029/43025-1098 WFDV30-10T/WFDV30-10SG15/WFDV30-10SG30/WFDV30-10MT

MicroFit3 430451427 PCB Header connector 43045 Wafer 12p Double row straight dip type

43045-1227/43045-1228/43045-1229/43025-1298 WFDV30-12T/WFDV30-12SG15/WFDV30-12SG30/WFDV30-12MT

MicroFit3 430451427 PCB Header connector 43045 Wafer 14p Double row straight dip type

43045-1427/43045-1428/43045-1429/43025-1498 WFDV30-14T/WFDV30-14SG15/WFDV30-14SG30/WFDV30-14MT

MicroFit3 430451427 PCB Header connector 43045 Wafer 16p Double row straight dip type

43045-1627/43045-1628/43045-1629/43025-1698 WFDV30-16T/WFDV30-16SG15/WFDV30-16SG30/WFDV30-16MT

MicroFit3 430451427 PCB Header connector 43045 Wafer 18p Double row straight dip type

43045-1827/43045-1828/43045-1829/43025-1898 WFDV30-18T/WFDV30-18SG15/WFDV30-18SG30/WFDV30-18MT

MicroFit3 430451427 PCB Header connector 43045 Wafer 20p Double row straight dip type

43045-2027/43045-2028/43045-2029/43025-2098 WFDV30-20T/WFDV30-20SG15/WFDV30-20SG30/WFDV30-20MT

MicroFit3 430451427 PCB Header connector 43045 Wafer 22p Double row straight dip type

43045-2227/43045-2228/43045-2229/43025-2298 WFDV30-22T/WFDV30-22SG15/WFDV30-22SG30/WFDV30-22MT

MicroFit3 430451427 PCB Header connector 43045 Wafer 24p Double row straight dip type

43045-2427/43045-2428/43045-2429/43025-2498 WFDV30-24T/WFDV30-24SG15/WFDV30-24SG30/WFDV30-24MT
   Product Description molex part.no Hoyato part No.

MicroFit3 430451427 PCB Header connector 43045 Wafer 14P 43025 Receptacle Housing Double row

43025-1400/43020-1408

HSD30-14

MicroFit3 430451427 PCB Header connector 43045 Wafer 14P Crimp Terminal, Female

430300002/430300003/430300004/

430300005/430300006/

430300007/430300008/43030009/

430300010

HST30SG15-2420/HST30SG30-2420/HST30T-3026/HST30SG30-3026/

HST30T-2420/HST30SG15-2420/HST30SG30-2420/HST30T3026-BAG

  MicroFit3 430451427 PCB Header connector 43045 Wafer is a versatile and reliable connector that is commonly used in a variety of industries for different applications. One of the key features of this connector is its high compatibility with a wide range of devices and systems, making it a popular choice for manufacturers across various industries.
Home Appliances:


  MicroFit3 430451427 PCB Header connector 43045 Wafer is commonly used in home appliances such as freezers, printers, scanners, security systems, and washing machines. Its compact size and durable design make it an ideal choice for connecting various components within these appliances, ensuring reliable and efficient operation.
Automotive:
   In the automotive industry, MicroFit3 430451427 PCB Header connector 43045 Wafer is often used by harness manufacturers for wiring and connection purposes. It is also utilized in inside devices such as control modules and sensors. Additionally, the connector is suitable for non-sealed applications where a secure and reliable connection is required.
MedTech:
    In the medical technology industry, MicroFit3 430451427 PCB Header connector 43045 Wafer is used in diagnostic equipment and patient monitors. Its high reliability and compatibility make it a popular choice for connecting sensitive medical devices, ensuring accurate and uninterrupted data transmission.
Telecommunications:
  MicroFit3 430451427 PCB Header connector 43045 Wafer is widely used in the telecommunications industry for connecting routers and switches, servers, and storage devices. Its high-speed data transmission capabilities and secure connection make it an ideal choice for ensuring smooth and efficient communication within telecommunication networks.
   Overall, the Hoyato MicroFit3 430451427 PCB Header connector 43045 Wafer stands out in the market for its superior compatibility and reliability. Its ability to seamlessly connect with a wide range of devices across various industries makes it a versatile and essential component for manufacturers. With its compact design and durable construction, MicroFit3 430451427 PCB Header connector 43045 Wafer is a cost-effective solution for ensuring high-performance connectivity in a variety of applications.

  MicroFit3 430451427 PCB Header connector 43045 Waferdeliver reliable electrical connections in a compact design. Ideal for various applications, ensuring secure and efficient power distribution in constrained spaces.

Wire to board realizes the space conversion and signal extension between PCB board and board by the extension of line to line. It is used in many fields such as automobile, communication, consumer electronics, data processing, industrial machinery and so on. Application in PCB connection and extension of Auxiliary Circ.

  MicroFit3 430451427 PCB Header connector 43045 Wafer family can withstand operating temperatures up to 125°C, is available in multiple circuit sizes and cable lengths for power applications and board-to-board, MMicroFit3 430451427 PCB Header connector 43045 Wafer and wire-to-wire configurations.
