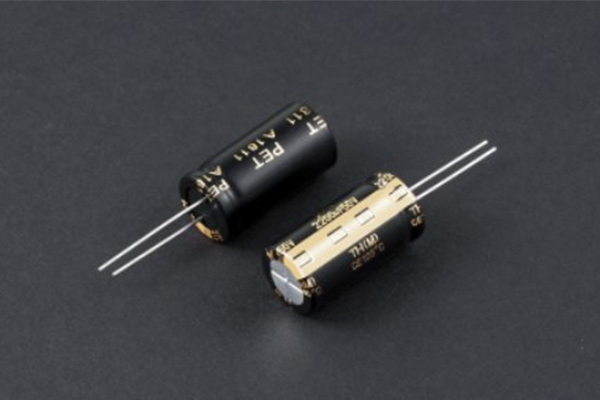

TH Series Aluminum Electrolytic Capacitors, switching Power supply
TH Series Aluminum Electrolytic Capacitors, switching Power supply
  • TH Series Aluminum Electrolytic Capacitors, switching Power supply

  • Part No : TH Series Aluminum Electrolytic Capacitors
  • SPECIFICATIONS

     Operating Temperature Range: -40℃~+105℃(6.3~80V. DC)/-25℃~+105℃(100~120V. DC)
     Voltage Range: 6.3~80V. DC/100~120V. DC

     Nominal Cap. Range: 4.7~15000μF(6.3~80V. DC)/0.47~1000μF(100~120V. DC)
     Leakage Current:I=0.01CV or 3(μA) whichever is greater.( after 2 minutes )

                                 where . I : Max Leakage Current ( μA ), C : Nominal Capacitance (μF), V : Rated Voltage ( V )( at 20℃)


  • Inquiry now
  • Products Drawing

Detailed description


conductive polymer aluminum solid capacitors are used in a wide range of electronic devices and applications where space efficiency, reliability, and capacitance are important.



Aluminum electrolytic capacitors, a type of electrolytic capacitor, uses an aluminum oxide film as a dielectric material. Capacitors are electronic components that store and release electrical energy. They consist of two conductive plates separated by an insulating material, which is the dielectric.



Aluminum electrolytic capacitors are commonly used in a wide range of electronic applications due to their relatively high capacitance values and compact size. They are especially useful in situations where high capacitance is required in a relatively small package. These capacitors can be found in power supply circuits, audio amplifiers, motor control circuits, and more.
