PCIe emerged as the successor to older bus standards like PCI (Peripheral Component Interconnect) and AGP (Accelerated Graphics Port), addressing the need for greater bandwidth and scalability. Unlike its predecessors, PCIe utilizes point-to-point architecture, enabling full-duplex communication between the CPU and peripheral devices. This innovation marked a significant departure from the shared bus architecture of PCI, which limited performance and scalability.

Each generation of PCIe has brought substantial improvements:

• PCIe 1.0: Introduced in 2003, offering 2.5 GT/s (Gigatransfers per second) per lane, translating to 250 MB/s of unidirectional bandwidth per lane.
• PCIe 2.0: Released in 2007, doubled the transfer rate to 5 GT/s, effectively doubling the bandwidth to 500 MB/s per lane.
• PCIe 3.0: Launched in 2010, further increased the data rate to 8 GT/s, with a bandwidth of nearly 1 GB/s per lane.
• PCIe 4.0: Introduced in 2017, doubled the data rate again to 16 GT/s, offering 2 GB/s per lane.
• PCIe 5.0: Debuted in 2019, continuing the trend with a 32 GT/s data rate, resulting in 4 GB/s per lane.
• PCIe 6.0: Expected in 2024, is set to push the limits further with a staggering 64 GT/s, equating to 8 GB/s per lane.

These advancements have made PCIe a cornerstone in high-performance computing, supporting everything from gaming and graphics to enterprise storage and networking solutions.

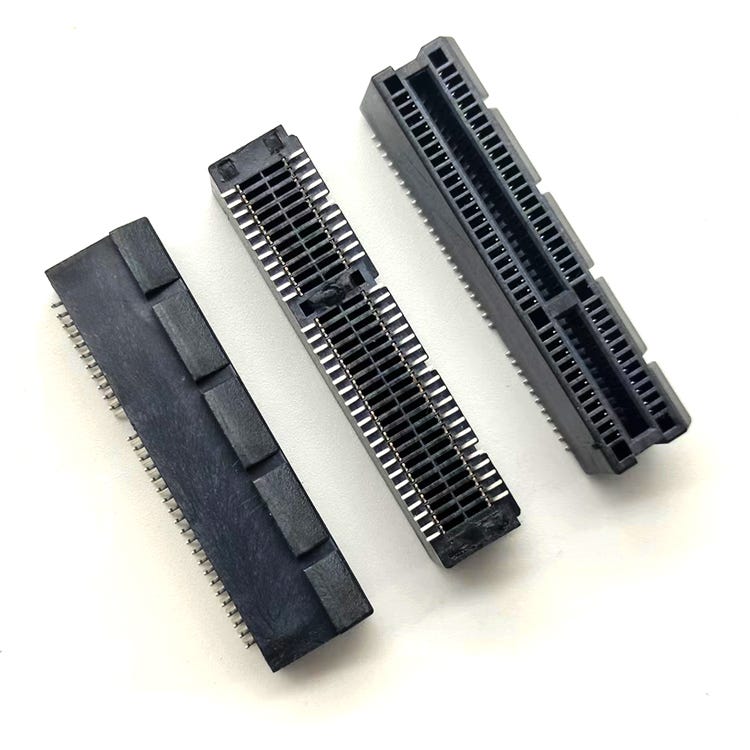

PCIe Architecture and Functionality

At its core, PCIe’s architecture is based on serial communication, where data is transmitted across multiple lanes, with each lane consisting of two pairs of wires for transmitting and receiving data. Devices can be connected using various lane configurations, such as x1, x4, x8, or x16, with the number of lanes determining the total available bandwidth. For instance, a PCIe 4.0 x16 slot provides up to 32 GB/s of bidirectional bandwidth.

PCIe supports a wide range of devices, including:

• Graphics Cards: Often utilizing the full x16 lane configuration, graphics cards benefit significantly from PCIe’s high bandwidth, allowing for rapid data exchange between the GPU and CPU.
• SSDs: NVMe (Non-Volatile Memory Express) SSDs connected via PCIe offer tremendous speed advantages over SATA-based drives, leveraging the low-latency and high-throughput capabilities of PCIe.
• Network Cards: High-speed network interfaces, such as 10GbE or 100GbE NICs, rely on PCIe to handle the vast amount of data required for modern networking.
• Expansion Cards: Various other expansion cards, including RAID controllers, sound cards, and specialized processing units, use PCIe slots to enhance a system’s functionality.

The PCIe protocol operates through layers, similar to the OSI model in networking:

• Physical Layer: Responsible for the actual transmission of data over the physical medium, ensuring signal integrity and data synchronization.
• Data Link Layer: Provides reliable data transfer by managing error detection and correction, as well as maintaining data flow control.
• Transaction Layer: Handles data packetization and routing, managing requests and responses between devices.

This layered approach allows PCIe to maintain high performance while ensuring data integrity and efficient communication between components.

Advancements and Future of PCIe

As we look toward the future, PCIe continues to evolve, driven by the demands of emerging technologies such as artificial intelligence (AI), machine learning (ML), and big data analytics. The forthcoming PCIe 6.0 standard is expected to deliver unprecedented bandwidth, catering to the needs of next-generation computing workloads.

www.dghoyato.com

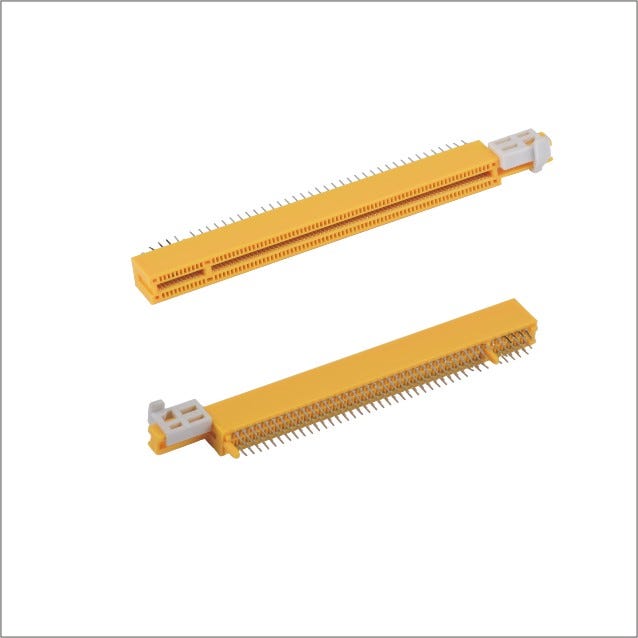

Key advancements in PCIe technology include:

• Increased Bandwidth: Each generation of PCIe has consistently doubled the available bandwidth, allowing for faster data transfer rates and supporting more demanding applications.
• Low Latency: PCIe’s efficient communication protocol minimizes latency, which is crucial for real-time applications such as gaming, virtual reality, and high-frequency trading.
• Power Efficiency: As bandwidth increases, PCIe standards also focus on improving power efficiency, ensuring that higher performance doesn’t come at the cost of excessive energy consumption.
• Backward Compatibility: One of PCIe’s significant advantages is its backward compatibility. Devices designed for older PCIe versions can operate in newer slots, albeit at reduced performance, ensuring a smooth upgrade path for consumers and businesses.

The introduction of PCIe 6.0 is set to be a game-changer, especially in areas like AI and ML, where massive amounts of data need to be processed in real-time. PCIe 6.0’s adoption of PAM-4 (Pulse Amplitude Modulation with 4 levels) signaling, which allows for higher data rates within the same bandwidth, is a testament to the ongoing innovation within the PCIe ecosystem.

PCIe in Modern Computing

In today’s computing landscape, PCIe is ubiquitous, with its presence felt across a wide range of devices and applications. In consumer electronics, PCIe is the backbone of high-performance gaming PCs, enabling seamless communication between GPUs, CPUs, and storage devices. The rise of NVMe SSDs, which utilize PCIe lanes to achieve unparalleled data transfer speeds, has revolutionized storage performance, making traditional SATA SSDs seem sluggish in comparison.

In the enterprise sector, PCIe’s role is even more pronounced. Data centers, which require high-speed interconnects to manage vast amounts of data, rely heavily on PCIe for everything from storage to networking. The advent of PCIe-based storage solutions, such as NVMe over Fabrics (NVMe-oF), has further enhanced data center efficiency, allowing for faster data access and reduced latency.

Moreover, PCIe is pivotal in emerging technologies like AI and ML. These fields demand immense computational power and rapid data transfer, both of which PCIe readily provides. High-performance computing (HPC) environments, which often utilize GPUs for parallel processing, benefit significantly from PCIe’s high bandwidth and low latency, enabling faster training and inference in AI models.

Challenges and Considerations

Despite its many advantages, PCIe is not without challenges. One of the primary concerns is signal integrity, especially as data rates increase with each new generation. Maintaining signal quality over high-speed connections requires advanced materials, precise manufacturing, and sophisticated error correction techniques. As a result, the cost of PCIe components, particularly those at the cutting edge of performance, can be high.

Another consideration is thermal management. As devices connected via PCIe become more powerful, they also generate more heat. Ensuring adequate cooling for high-performance GPUs, NVMe drives, and other PCIe-connected components is essential to maintain system stability and prevent thermal throttling.

Finally, as PCIe continues to evolve, there is the issue of software and firmware compatibility. While PCIe standards are designed to be backward compatible, ensuring that drivers and firmware can fully exploit the capabilities of new PCIe versions requires ongoing development and support from hardware manufacturers and software developers.

Conclusion

PCIe has established itself as an indispensable technology in modern computing, driving advancements across a wide array of industries and applications. From its initial introduction to the forthcoming PCIe 6.0 standard, each iteration has brought significant improvements in speed, efficiency, and functionality. As we look to the future, PCIe will undoubtedly continue to play a central role in the evolution of computing, supporting the increasingly demanding needs of applications such as AI, big data, and cloud computing.

Whether in consumer electronics, enterprise environments, or cutting-edge research, PCIe’s impact is far-reaching and profound. As technology continues to advance, PCIe will remain at the forefront, enabling the high-speed data transfer that is essential for the next generation of computing innovations.
