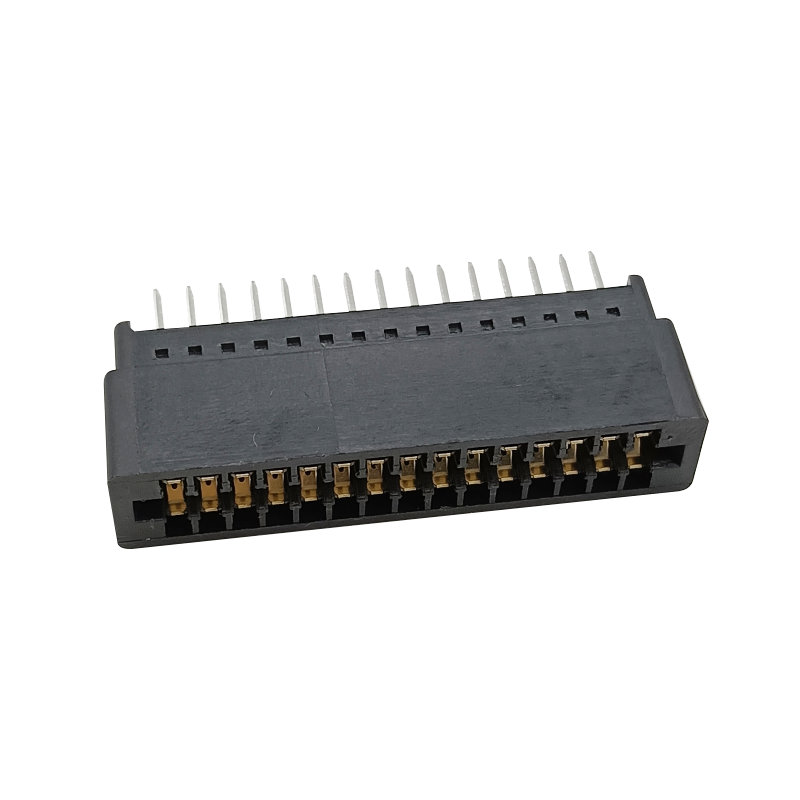

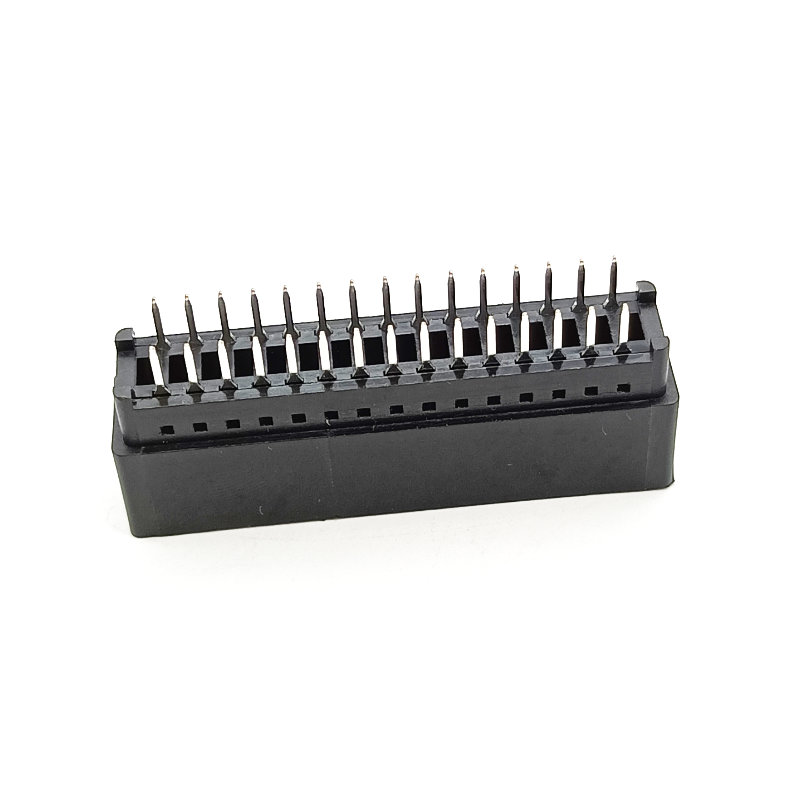

2.54mm pitch PCI connector 2X15 pins straight type solt PCB Board connector edge cars socket

Specifications

Current Rating:2.0A AC/DC
Voltage Ratinge:125V AC/DC
Contact Resistance:20m ohm. Max at DC 100m Amps
Insulation Resistance:500M ohm min at DC 500V
Withstanding Voltage:1500V(r.m.s) For one Minute
Operating Temperature Range:-55°C ~ +105°C

Materials:

Insulator:High Temp. Plastic(PBT94V-0)
 Color:Black
Conact :Coppy Alloy

Plated:Selective Gold Plated

Inquiry quotation: provide Total Height and Plating requirement
