surface mount pin header is an electrical connector designed for surface-mount technology applications.
surface mount pin header is an electrical connector designed for surface-mount technology applications.

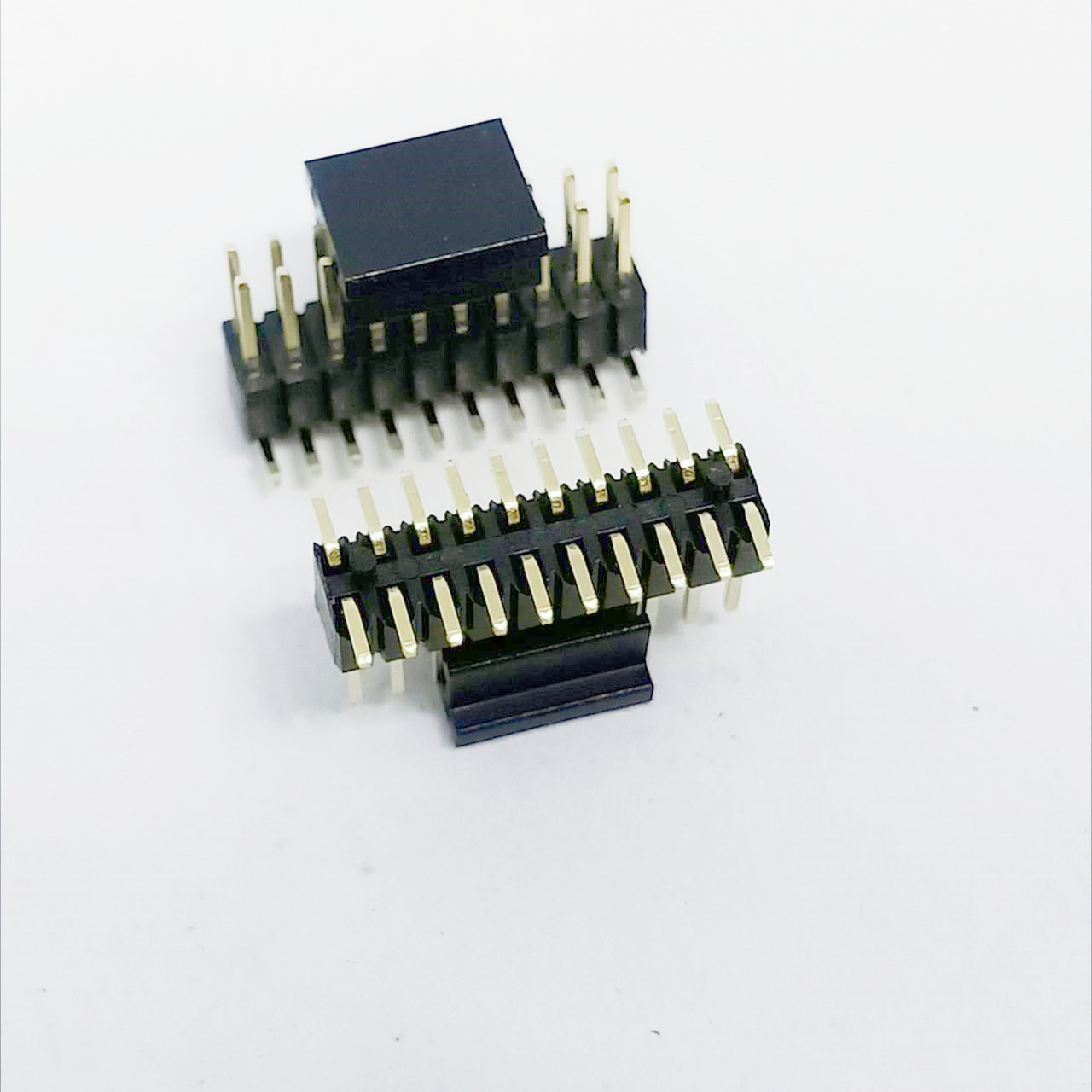

  • Connector Header Surface Mount 20 position 0.050″ (1.27mm)

  • Part No : PHDSM127-20G-4030CH
  • Current Rating: 1.0 Amps

    Voltage Rating: 50V AC/DC

    Contact Resistance: 20mohm max.

    Insulation Resistance: 1,000M ohm min.

    Withstanding Voltage: 500V For One Minute

    Operating Temperature: -25 ℃ ~ +105 ℃

    Material

    lnsulator: High Temp.Plastic(Nylon 6T UL94V-0)

    Standard Color: Black

    Contact: Copper Alloy

    Plating: Gold Plated


  • Inquiry now
  • Products Drawing

Detailed description


surface mount pin header is an electrical connector designed for surface-mount technology applications.

Contact:Catherine Tang

Email:sales01@dghoyato.com

Mobile/WhatsApp:+18692238587

Space Efficiency: The compact design of Surface Mount Pin Headers optimizes PCB space, allowing for more components or a sleeker design in your electronic projects.

Reliable Connections: SMT-compatible headers provide a secure and robust connection. This reliability is essential in applications where the integrity of the connection is critical.

Versatility: Surface Mount Pin Headers find applications in a wide range of industries, including consumer electronics, telecommunications, and industrial automation. They are versatile and can be used wherever compact, SMT-compatible connectors are required.
