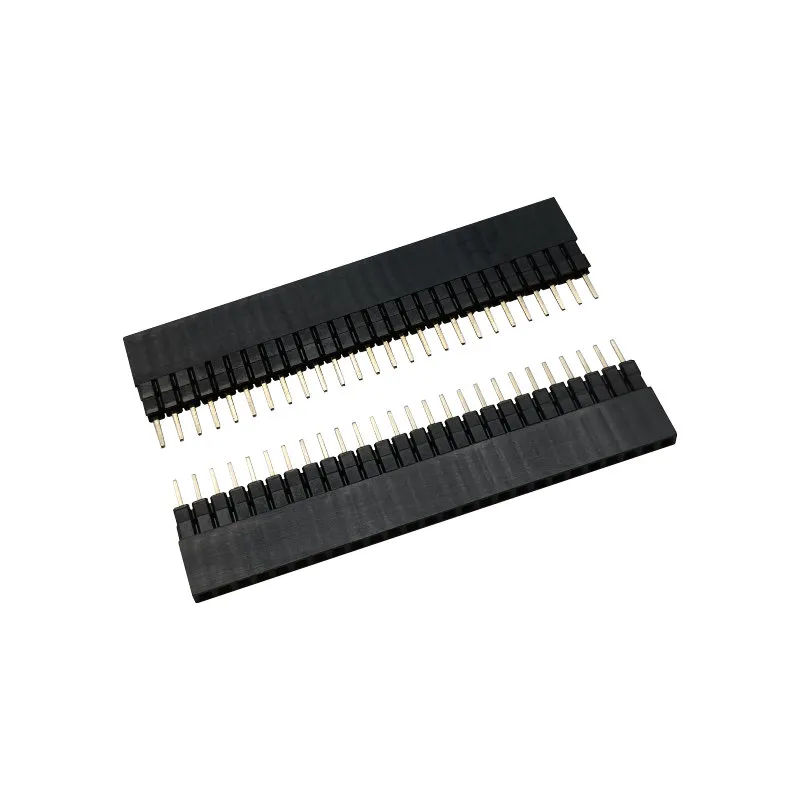

2.54mm Pitch 26 Pin Female Header Single Row Straight Pin Header equivalent ESW-1
2.54mm Pitch 26 Pin Female Header Single Row Straight Pin Header equivalent ESW-1
  • 2.54mm Pitch 26 Pin Female Header Single Row Straight Pin Header equivalent ESW-1

  • Part No : PSH254-26G-2B
  • Specifications
    Current Rating:3.0A AC/DC
    Voltage Ratinge:250V AC/DC
    Contact Resistance:20m ohm. Max
    Insulation Resistance:1000Mohm min
    Withstanding Voltage:600V(r.m.s) For one Minute
    Operating Temperature Range:-40°C ~ +105°C
    Materials:
    Insulator:High Temp. Plastic(PBT UL94V-0)
     Color:Black
    Conact :Copper Alloy

    Plated:Gold Plated

    Inquiry quotation: provide Plastic Height and Plating requiremen


  • Inquiry now
  • Products Drawing

Detailed description


Knowing the 2.54mm Connectors

2.54mm Socket: A 2.54mm socket is a type of connector with a pin spacing of 2.54mm (0.1 inches), which is a standard pitch in the electronics industry. These sockets are used to connect various components on a printed circuit board (PCB) and are essential in prototyping and production environments. The sockets are available in various configurations, including single row and double row, making them versatile for different applications.

2.54mm Pin Header Socket: The 2.54mm pin header socket is designed to interface with pin headers, providing a female connection point for male pins. These are commonly used in applications where removable connections are needed, such as in development boards and modular systems. Pin header sockets come in different orientations, such as straight or right-angle, to accommodate various design requirements.

2.54mm Pin Socket: Similar to the pin header socket, the 2.54mm pin socket provides a female connection for individual pins or headers. These are often used in situations where secure and reliable connections are critical. The pin sockets can handle various current and voltage levels, making them suitable for a wide range of applications, from consumer electronics to industrial automation.

Compare the SAMTEC and HOYATO product price:

SAMTEC:high price and high quality  0.5$~1.5$

HOYATO: Low price but high quality   0.1$~0.7$

It is obvious that HOYATO is the better choice.

Key Features and Benefits

  1. Standard Pitch:

    • Description: The 2.54mm pitch is an industry-standard, ensuring compatibility with a wide range of components and PCBs.
    • Applications: Suitable for breadboards, PCBs, and other prototyping tools.
  2. Versatility:

    • Description: Available in multiple configurations, such as single row, double row, and various pin counts.
    • Applications: Ideal for use in consumer electronics, industrial machinery, and telecommunications equipment.
  3. Durability:

    • Description: Constructed from robust materials that ensure long-lasting performance.
    • Applications: Can withstand repeated connections and disconnections, making them suitable for use in test and development environments.
  4. Ease of Use:

    • Description: These connectors are designed for easy integration and soldering onto PCBs.
    • Applications: Commonly used in development boards like Arduino, Raspberry Pi, and other microcontroller platforms.

Applications of 2.54mm Connectors

Consumer Electronics: In devices like smartphones, laptops, and gaming consoles, 2.54mm connectors ensure reliable internal connections. Their compact size allows for efficient use of space, which is critical in modern, sleek devices.

Industrial Automation: Used in control panels, robotics, and machinery, these connectors provide the durability and reliability needed in industrial environments. Their robust construction can handle the rigors of industrial use, including exposure to dust, moisture, and vibrations.

Telecommunications: Essential in networking equipment, servers, and communication devices, 2.54mm connectors facilitate high-speed data transfer and reliable signal integrity. Their standard pitch ensures compatibility with a wide range of telecom components.

Medical Devices: In medical equipment like diagnostic machines, monitoring systems, and portable health devices, 2.54mm connectors ensure precise and reliable connections. This reliability is crucial for the accuracy and functionality of medical devices.

Spotlight on Samtec HLE Series

The Samtec HLE series is a standout in the realm of 2.54mm connectors. Known for its high reliability and performance, the Samtec HLE series includes a range of headers and sockets designed to meet the stringent requirements of various applications.

Key Features of Samtec HLE:

  • High-Reliability Contacts: Designed for secure and stable connections, reducing the risk of intermittent connectivity issues.
  • Versatile Configurations: Available in multiple pin counts and orientations to suit diverse application needs.
  • Robust Construction: Manufactured using high-quality materials that provide durability and longevity, even in harsh environments.
