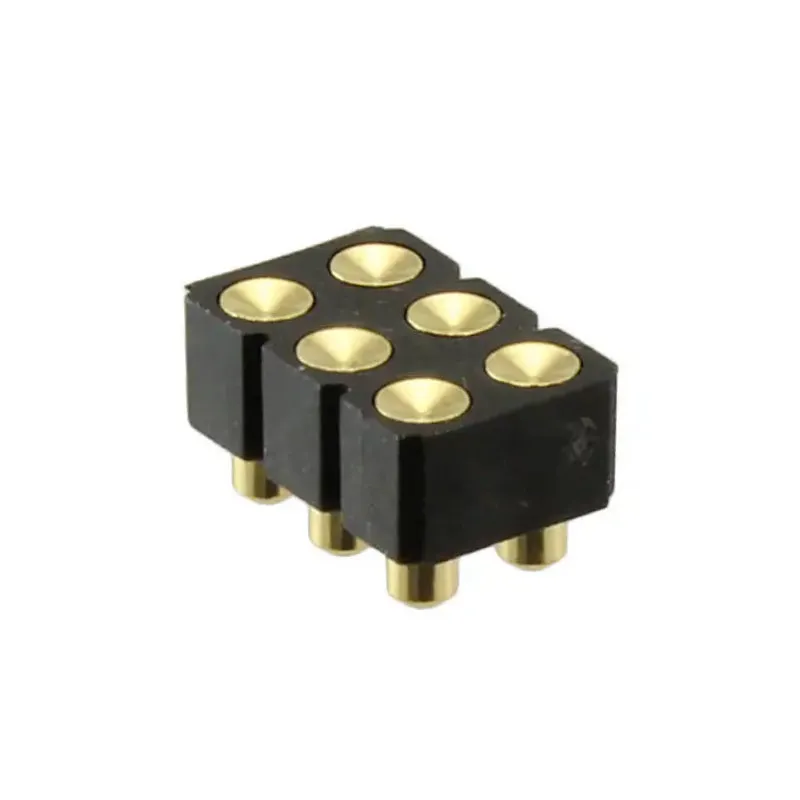

Spring Loaded Target Dual Row 6 pin SMD 419-10-206-30-007000
- Part No : PGP254-06G10-43
-
Material
Plunger: Brass 3604
Barrel: Brass 3604
Spring: SUS304
Housing: PA6TPlating
Plunger: 10u”(0.25um) minimum gold over 100u”(2.54um) nickel
Electrical
Rated current & voltage: DC 12V; 3.0A Max.
Contact resistance: 50 mohm maximum at normal working height(quiescence) - Inquiry now
- Products Drawing Products Drawing
Detailed description
spring loaded contact pins are designed with a spring mechanism that applies consistent pressure to maintain contact with a mating surface or component.
Spring Loaded Target Dual Row 6 pin SMD 419-10-206-30-007000
Contact:Catherine Tang
Mobile/WhatsApp:+18692238587
Pogo pin is a kind of spring probe formed by riveting and preloading three basic components of needle shaft, spring and needle tube through precision instrument. There is a precision spring structure inside. The surface coating of Pogo pin is generally gold-plated. It can improve its corrosion protection function, mechanical properties, electrical properties and so on. The needle tip has pointed needle, grasping needle, round needle, knife needle and so on. Pogo pin is generally used in mobile phone, communication, automobile, medical treatment, aerospace and other electronic products, which can improve the corrosion resistance, stability and durability of these connectors. Because pogo pin is a very fine probe, it can reduce the weight and appearance volume of the connector in precision connector, and make the connector more fine and beautiful.
