Board to board connector smt are designed to be mounted directly onto the surface of the PCBs, as opposed to through-hole connectors, which are inserted through holes in the board and soldered on the other side.
Board to board connector smt are designed to be mounted directly onto the surface of the PCBs, as opposed to through-hole connectors, which are inserted through holes in the board and soldered on the other side. 0.8mm board to board plug 515mm height smt type 0.8mm board to board plug 515mm height smt type 0.8mm board to board plug 515mm height smt type

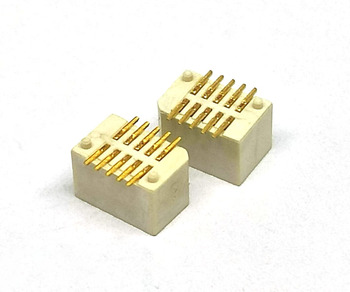

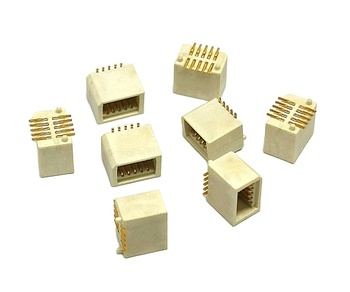

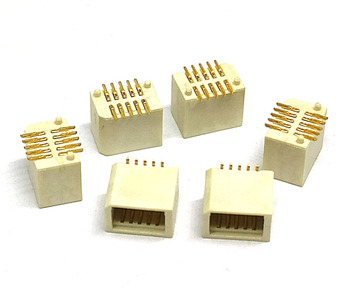

  • 0.8mm board to board plug 515mm height smt type

  • Part No : BBP08-10G-515-TR

  • Specifications
    Current Rating: 1.0A AC/DC
    Voltage Ratinge: 125V AC/DC
    Contact Resistance: 20m ohm. Max
    Insulation Resistance: 100Mohm min
    Operating Temperature Range: -40°C ~ +85°C
    Insulator: High Temp. Plastic(Nylon 46 UL94V-0)


  • Inquiry now
  • Products Drawing

Detailed description


Board to board connector smt are designed to be mounted directly onto the surface of the PCBs, as opposed to through-hole connectors, which are inserted through holes in the board and soldered on the other side

Board-to-Board Connectors for microminiature, high-speed, high-density, and high-power applications, such as stacking, mezzanine, coplanar, orthogonal and PCB connectors
