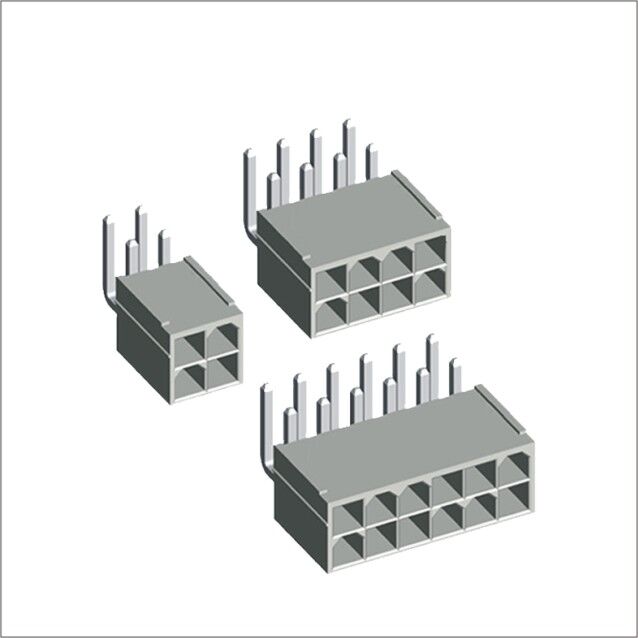

MX 4.2mm Wafer R/A Dip Type With Peg Double Row
MX 4.2mm Wafer R/A Dip Type With Peg Double Row
  • MX 4.2mm Wafer R/A Dip Type With Peg Double Row

  • Part No : WFDR42-08-PN
  • Specifications
    Current Rating: 9.0A AC/DC
    Voltage Rating: 600V AC/DC
    Contact Resistance: 10m ohm. Max
    Insulation Resistance: 1000Mohm min
    Withstanding Voltage: 1500V(r.m.s) For one Minute
    Operating Temperature Range: -40°C ~ +105°C
    Materials:
    Insulator: High Temp. Plastic(Nylon 66 UL94V-2)
    Color: White
    Contact: Copper Alloy
    Plated: Tin Plated


  • Inquiry now
  • Products Drawing

Detailed description


VAL-U-LOK connectors ensure secure and reliable electrical connections. Versatile and durable, these connectors are ideal for various applications, offering efficient and stable performance.

Wire to board realizes the space conversion and signal extension between PCB board and board by the extension of line to line. It is used in many fields such as automobile, communication, consumer electronics, data processing, industrial machinery and so on. Application in PCB connection and extension of Auxiliary Circ.
